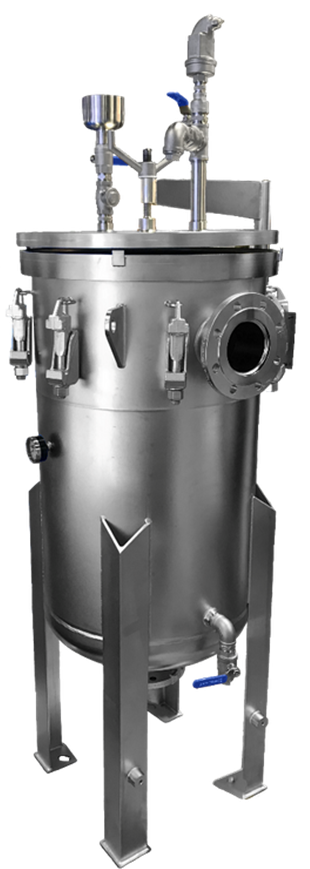

Filter Pot MEGA
The All-In-One Filter Pot MEGA combines all the functions of a:
- Dosing pot
- Dirt and air separator
- Magnetic in line filter
- Cartridge filter
- Plus more features that comply with BSRIA guidelines
Technical information
Maximum system working pressure
10 Bar, 20 Bar or 30 Bar
Suitable for system volumes up to
900,000 Litres for DN100 Connections – MEGA-4 Unit
2,000,000 Litres for DN150 Connections – MEGA-6 Unit
Flow rate through vessel
0.08 L/sec to 23.15 L/sec (1.481 L/min to 1,389 L/min)
Temperature range
0°C to 110°C (Magnet Only) 0°C to 90°C (Heating Systems)
Filtration rate
Down to 0.5 micron
Dirty flow inlet connection
DN100 Flanged – MEGA-4 Unit , DN150 Flanged – MEGA-6 Unit
Clean return outlet connection
DN100 Flanged – MEGA-4 Unit , DN150 Flanged – MEGA-6 Unit
Dosing capacity
250 Litres
Filter body mounting
Floor mounted
Vessel body
304 SS (complies with SEP for Group 2 Liquids) & ATEX Certified:
CE EX II 2 GD cx
Magnets x18No
Neodymium Rare Earth located within 3No 316SS Magent Grates
Cartridge Filter (4No 0.5micron - supplied with Filter Pot MEGA)
Polypropylene Melt Blown Anti-Microbial + Bio-Degradable
Spun Bonded Fibre available in 50, 20, 5 and 0.5 micron as
spare replacements
Isolation valves, NRV and fittings
304 SS
Automatic air vent
304 SS / 110°C / <30 Bar Max Working Pressure
Weight
250kg (empty) 500kg (full)
Download the Filter Pot MEGA data sheet
Find out more information by downloading the data sheet below.
